OUR SERVICES

Explore unlimited possibilities

Below is a small list of the services we provide. Call or email for a complete listing and description of our other products and services.

SELECTIVE SOLDER

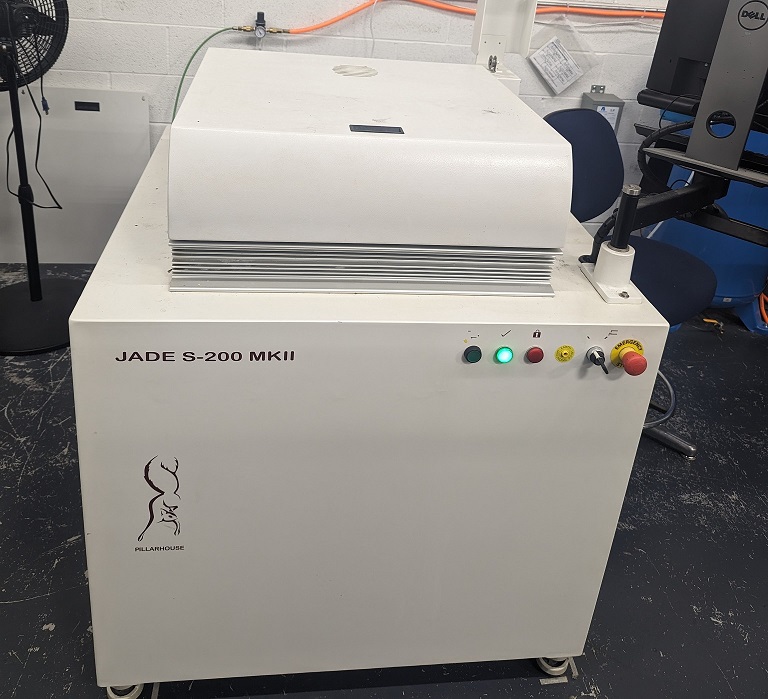

The Jade Pillarhouse is our Selective Solder Machine. We have both a Lead Free (SAC 305) and Leaded (Sn 63 Pb 37) Solder baths available for process. Can solder in between SMT components for multisided boards.

SURFACE MOUNT

We have Four Machines for SMT Placement operation. Topaz X-II and Opal X-II can run in sequence for our bigger jobs. IPulse M20 specializes in longer boards and big panals, IE: LED strips or 100 panal boards. Our YSM-10 is our fastest running production machine and can place most sized footprints.

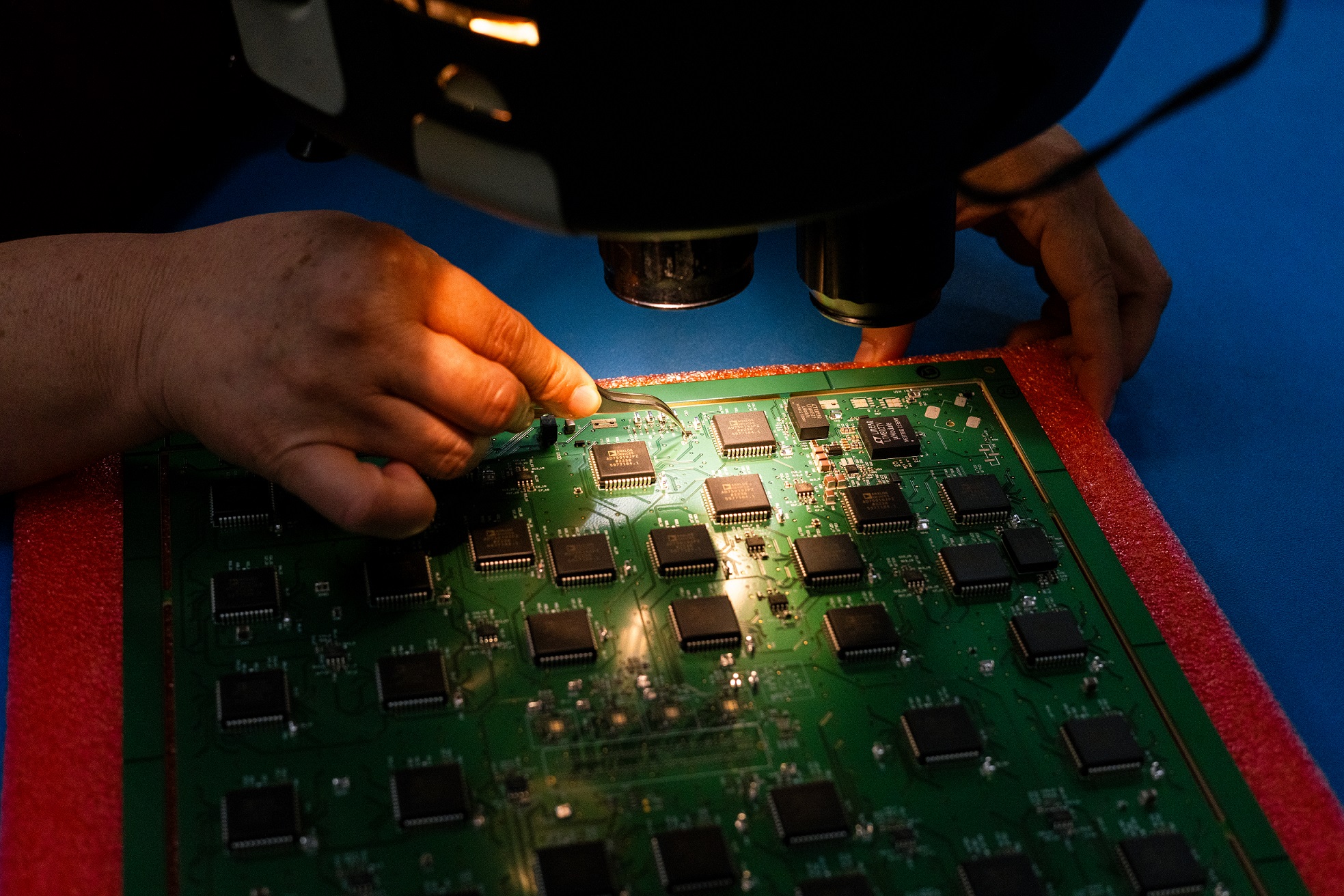

THROUGH HOLE/HAND SOLDER

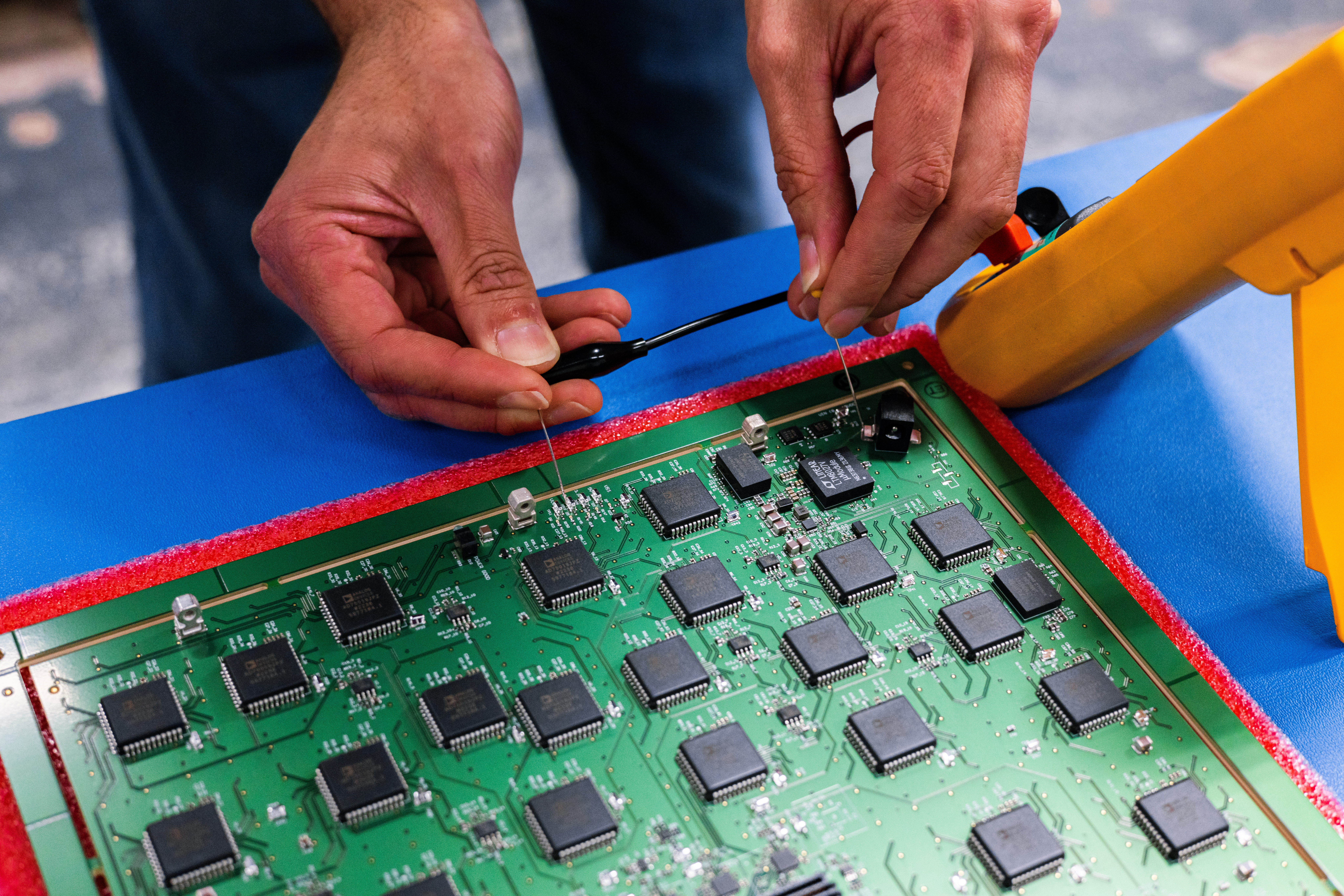

We have ten Hand Solder Stations, for any intricate parts our customers do not feel comfortable having go through our smt machines, as well as Hand Solder for simple through hole projects.

AOI INSPECTION

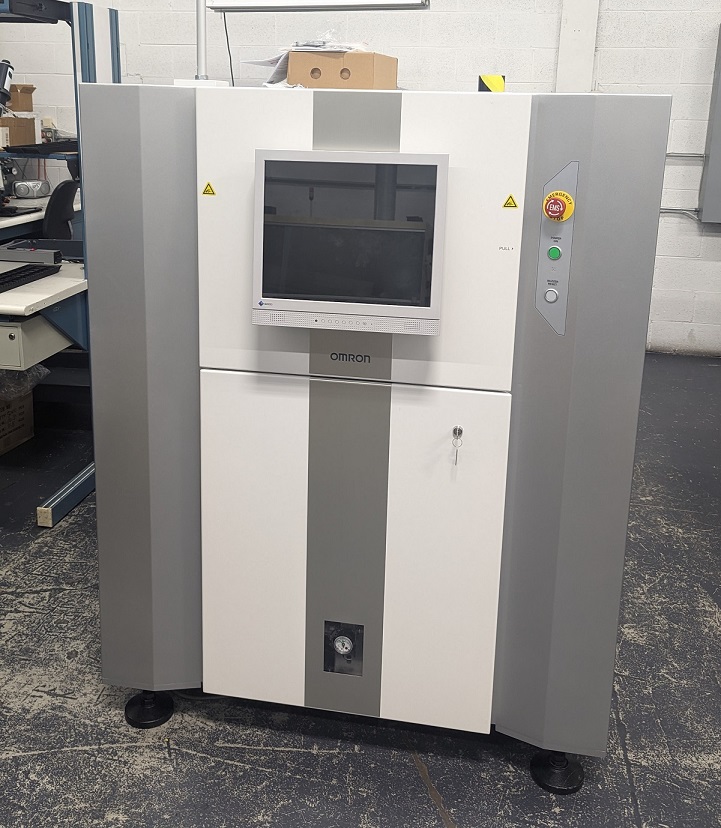

Our OMRON S530 has no issues inspecting any board we produce, it has pre and post reflow capabilities. Can inspect through hole solder components. Uses Moray technology to get measurements down to the micron.

SOLDER WAVE

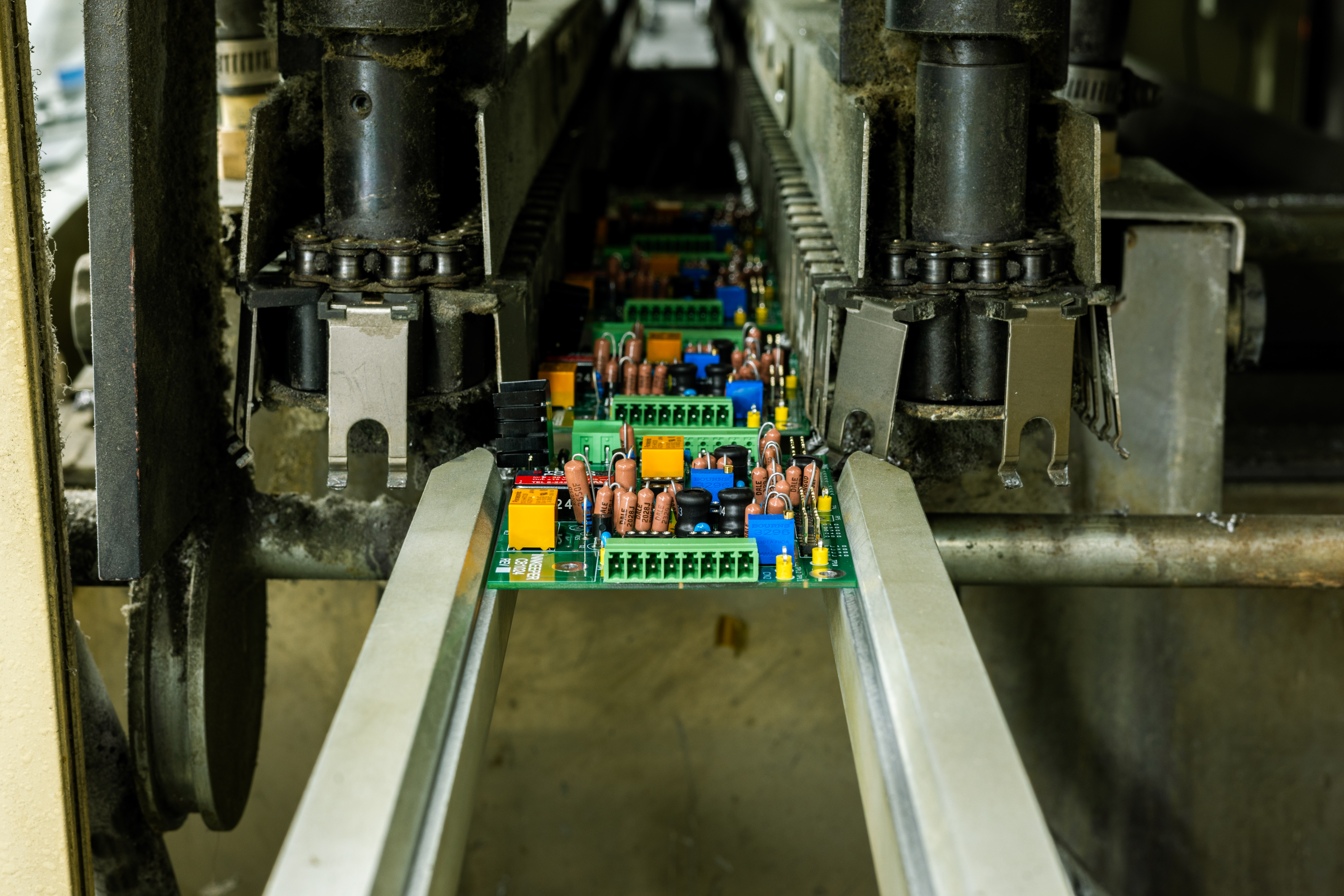

Our Vitronics Soltec Prima Wave will efficiently wave Solder any wave project you need done, in a timely and accurate manor, Pre Flux jet enabled on the machine.

PROTOTYPING

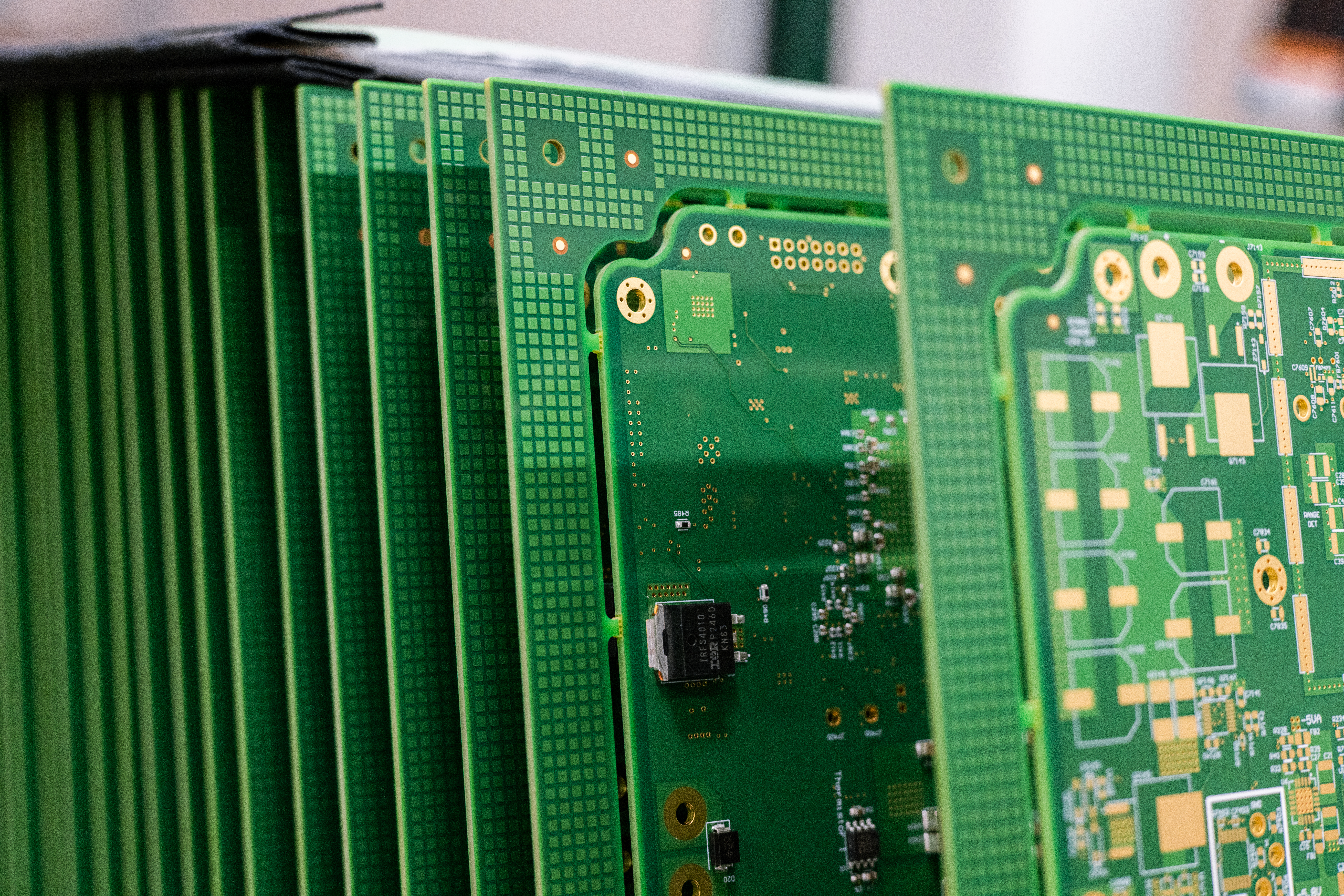

Our specialty, you have a small parcel prototype you want done in a timely fashion? Let us work with your engineers to work out all the kinks for you, before your product reaches production!

ABOUT US

MicroPlace, Inc.

Microplace, Inc. was incorporated on Dec. 3 1996 as an S corporation. We specialized in the population of electronic component on the printed circuit boards.

message from the president

Studied Industrial engineering in the Philippines before migrating to the United States in 1982. I finished studying electronics engineering technology at Triton College in 1989. I have been involve in the electronics industry for 35 years starting at PCB layout, engineering assistant, operations manager and business owner.

about

CONTACT

Request a Quote

Fill out the form below and click 'Submit'. Once your email opens you can further edit, if required. If your email does not appear, open your email and send us an email at mail@microplace.net .

Submit
contact
ADDRESS

1071 Davis Rd, Elgin, IL 60123

CALL FOR QUOTE

(847) 608-6678

SEND US A MESSAGE

mail@microplace.net

OPERATING HOURS

09:00 AM - 5:00 PM

Microplace

A provider of quality custom circuit boards since 1996.
